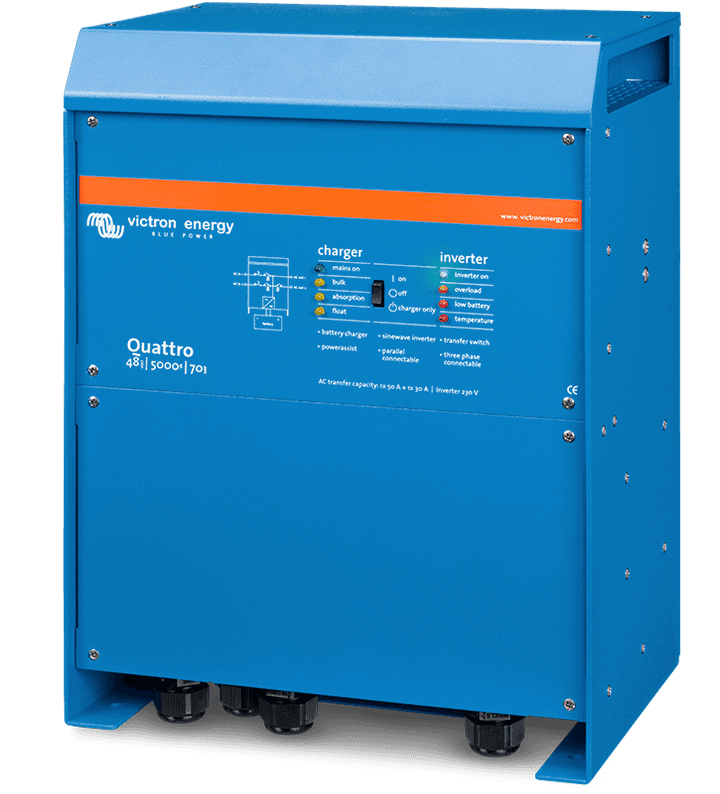

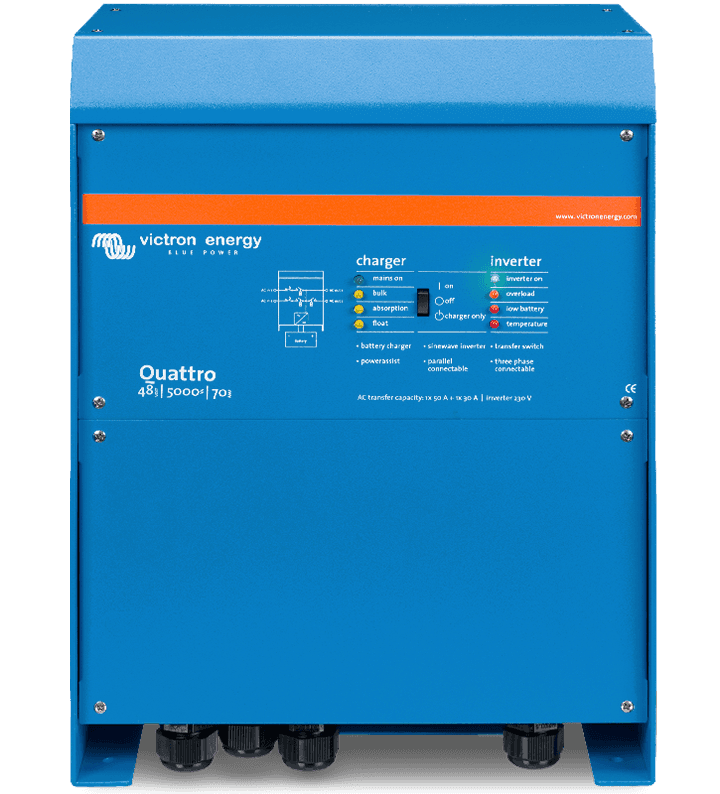

Victron Quattro 48/5000/70-100/100

Victron's Quattro 48/5000/70-100/100 is a dual-AC-input 48V inverter/charger delivering 4,000W of continuous output, ideal where seamless switching between shore power and a generator (or two separate AC sources) is needed alongside high-current charging.

• Continuous output power: 4,000W (5,000VA) at 25°C
• Peak power: 10,000W
• Input voltage: 48V DC nominal
• AC output: 230V, 50Hz pure sine wave
• Max battery charge current: 70A, 4-stage adaptive charging
• Two independent AC inputs (100A each) with automatic no-break (<20ms) transfer between sources
• VictronConnect app monitoring via optional VE.Bus Smart dongle; compatible with Cerbo GX for remote monitoring
• 5-year warranty (extendable to 10 years)

Downloads: Manual (PDF) · Datasheet (PDF)

Supplied & fitted by Fiadh Adventure Vehicles Ltd — Scotland's only Victron Energy Approved Installer for leisure vehicles.
